WOLF-11R6
Overview
3U VPX RTM for DisplayPort and Legacy Video Outputs

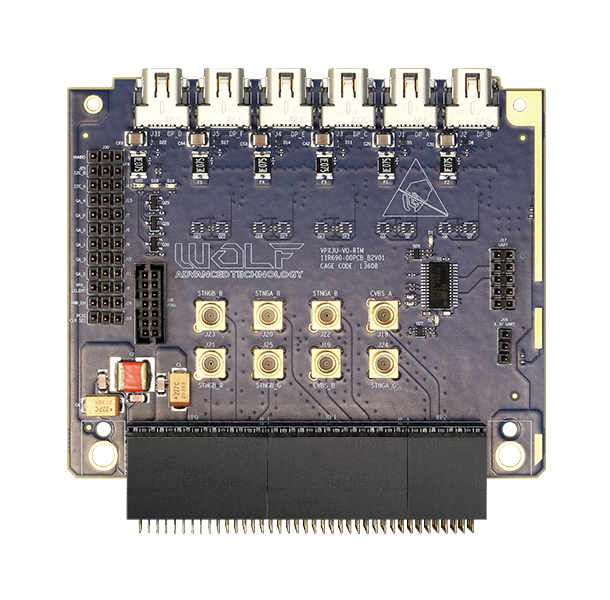

The VPX3U-RTM-VO (WOLF-11R6) is a 3U VPX rear transition module that breaks out video outputs from compatible WOLF payload boards to accessible rear connectors. It provides six Mini-DisplayPort outputs (DP++) for modern digital displays, along with two CVBS outputs and up to two STANAG RGB outputs for legacy video integration.
In addition to video I/O, the RTM includes JTAG access, 12 V UART and 3.3 V UART connections, and status LEDs for board power and fault indication. The WOLF-11R6 is intended to simplify chassis cabling and system integration for WOLF video output payload modules, including WOLF-1178, WOLF-1348, WOLF-1116, and WOLF-0197.
Block Diagram
The block diagram shows a 3U VPX RTM focused on DisplayPort++ and legacy video outputs, highlighting how multiple DP links and analog outputs are routed from compatible payload GPU modules to rear connectors. It emphasizes the rear breakout function and the mixed modern/legacy video egress paths for mission display integration.
Features
WOLF-11R6 is a 3U VPX rear transition module designed to provide rear video outputs for compatible WOLF video output payload modules. It supports a mix of modern and legacy display interfaces and includes service/debug connectors intended to support integration and test activities.
Video I/O Features
- 6 Mini-DisplayPort (DP++) outputs
- Up to 2 STANAG video outputs
- 2 CVBS outputs
Connectivity / System Management
- Output ports for DisplayPort
- Output ports for CVBS
- Output ports for STANAG RGB
- JTAG connector
- 12V UART connector
- 3.3V UART connector
- LED status lights
- Compatible payload modules include:
-
- WOLF-1178: VPX3U-P2000E-VO
-
- WOLF-1348: VPX3U-RTX5000E-VO
-
- WOLF-1116: VPX3U-P3000-VO, VPX3U-P5000-VO, VPX3U-P5200E-VO
-
- WOLF-0197: VPX3U-M5000SE-VO
Mechanical / Open Systems Architecture
- 3U VPX rear transition module (RTM)
- Designed for rugged chassis rear video breakout and service access
Specifications
Key configuration and performance parameters for WOLF-11R6 are summarized below for quick comparison. Values shown reflect the standard module configuration; contact WOLF if you need a tailored build or a specific payload profile.
Configuration Guide
The following guidance summarizes common ordering and configuration choices for the VPX3U-RTM-VO rear transition module. Supported outputs and mappings depend on the paired payload module.
Some configuration options for this RTM include:
- Display output utilization (6x Mini-DisplayPort / DP++)
- Legacy output utilization (up to 2 STANAG outputs and 2 CVBS outputs, payload dependent)
- Cable/adapter selection for HD-BNC CVBS connectors and onboard MCX access for STANAG interfaces
Representative ordering numbers
| Ordering Number | Description |
|---|---|
| Contact Sales | Contact Sales for the latest ordering numbers and available options. |
FAQ
WOLF-11R6 is a 3U VPX RTM used to break out video outputs from compatible WOLF payload modules to rear connectors.
It is intended to support payloads including:
- WOLF-1178 (VPX3U-P2000E-VO)
- WOLF-1348 (VPX3U-RTX5000E-VO)
- WOLF-1116 (VPX3U-P3000-VO / P5000-VO / P5200E-VO)
- WOLF-0197 (VPX3U-M5000SE-VO)
It is an integration accessory—its value is connectorization and maintainability, not adding compute.
It provides:
- 6× Mini-DisplayPort (DP++) outputs
- 2× CVBS outputs
- Up to 2× STANAG RGB outputs
Decide early:
- DP++ interoperability expectations (HDMI/DVI adapters, cabling, sink compatibility)
- Whether STANAG outputs are required (legacy display infrastructure)
- Rear harness and connector access plan inside the chassis
It includes:
- JTAG access
- 12V UART and 3.3V UART connections
- Status LEDs for power/fault indication
These interfaces are often essential for:
- Factory bring-up and integration test
- Field troubleshooting and depot-level maintenance
Planning for access to these ports can materially reduce integration and support time.
Ordering typically depends on the paired payload and the desired connectorization/harness strategy.
Contact Sales for ordering information and available configuration options.
